Basemap Plot with Chartly

Chartly supports geographic visualisation through basemap plotting using the add_basemap(...) method. Users can display projected contour data on a world map while keeping the plotting interface simple and consistent with the rest of the package.

Example

The example below generates contour data, projects it onto a basemap, and visualises the result using Chartly’s high-level interface.

The following customization options can be passed through the customs dictionary when creating a basemap plot:

  • proj (str): Map projection type (e.g., “eck4”)

  • lon_0 (int): Central longitude used during the basemap projection step

  • draw_countries (bool): Draw country borders

  • draw_parallels (bool): Draw latitude lines

  • draw_meridians (bool): Draw longitude lines

  • mask (array-like of bool): Boolean mask used to control hatched regions; required when hatch is enabled and hatch_customs.get("type") == "mask".

  • contour (bool): Enable contour plotting

  • hatch (bool): Enable hatching; when hatch_customs["type"] == "mask", hatched regions are determined by mask.

  • hatch_customs (dict): Customization options for hatching (for example, {"type": "mask"}).

import chartly
import numpy as np

super_axes_labels = {
    "super_title": "Simple Usage Of Basemap Example",
    "share_axes": False,
}

plot = chartly.Chart(super_axes_labels)

# Define grid size (latitude x longitude)
nlats, nlons = 73, 145

# Create latitude and longitude grids
delta = 2.0 * np.pi / (nlons - 1)
lats = 0.5 * np.pi - delta * np.indices((nlats, nlons))[0, :, :]
lons = delta * np.indices((nlats, nlons))[1, :, :]

# Generate sample data over the grid
wave = 0.75 * (np.sin(2.0 * lats) ** 8 * np.cos(4.0 * lons))
mean = 0.5 * np.cos(2.0 * lats) * ((np.sin(2.0 * lats)) ** 2 + 2.0)

# Combine into final dataset for plotting
z = wave + mean

plot.add_basemap(
    lon=lons * 180.0 / np.pi,
    lat=lats * 180.0 / np.pi,
    values=z,
    customs={
        "proj": "eck4",
        "lon_0": 0,
        "draw_countries": True,
        "draw_parallels": True,
        "draw_meridians": True,
        "mask": z < 0,
        "contour": True,
        "hatch": True,
        "hatch_customs": {"type": "mask"},
    },
)

plot.render()

This example uses the Eckert IV projection and overlays contour data onto a global map. Masking and hatching are applied to highlight specific regions of the dataset, improving the visual distinction of key areas.

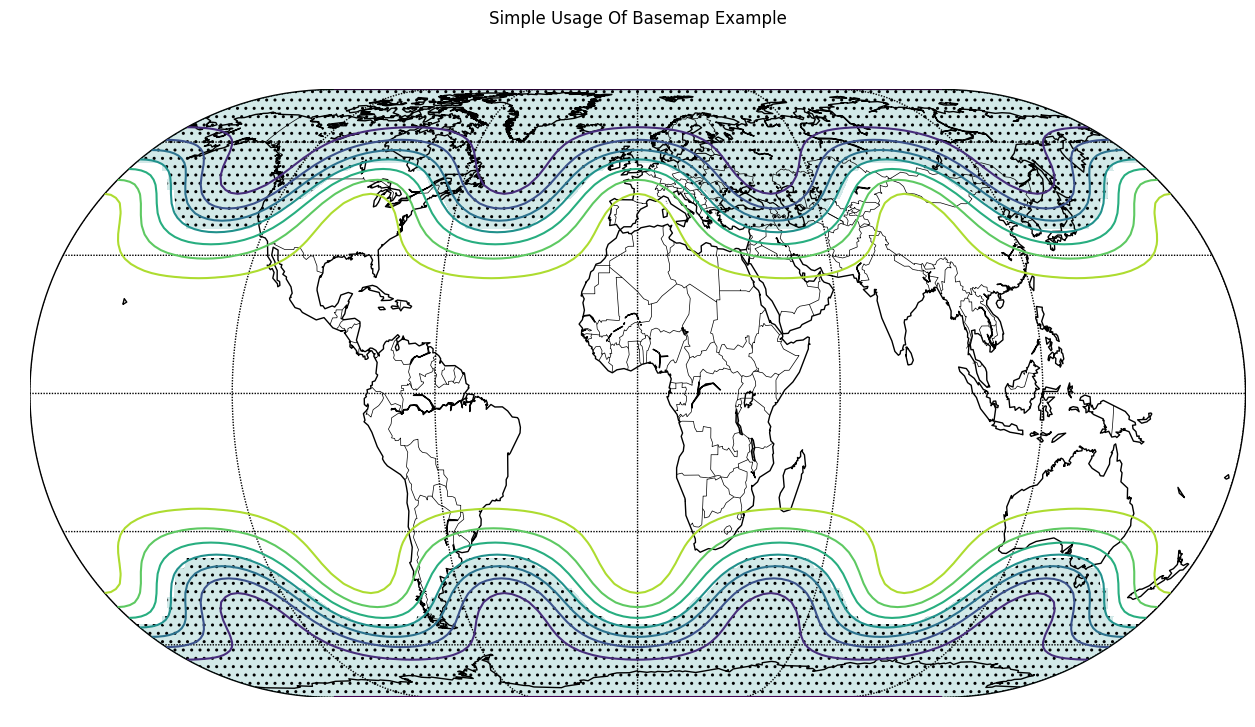

Basemap Plot Example
